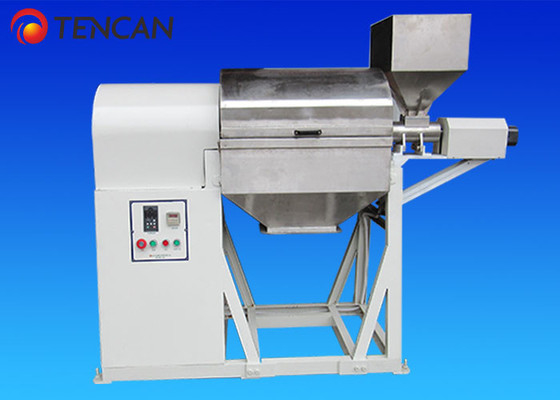

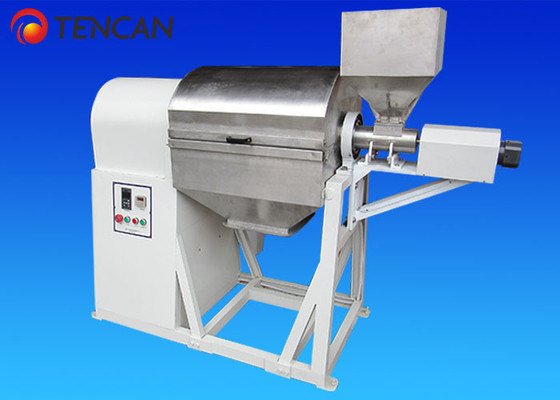

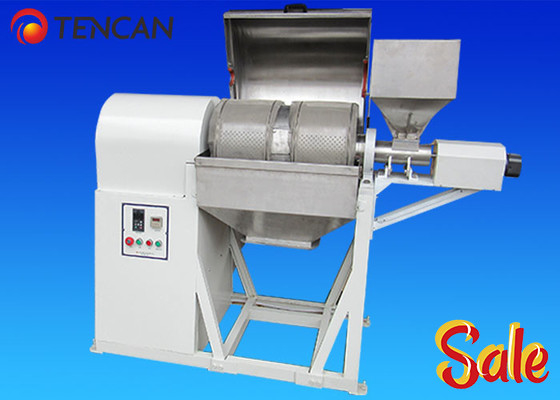

Uninterrupted Production QSM-30L Grinding Sieving System Max Load Volume 10.5L Industrial-Grade Integrated Milling Solution
تفاصيل المنتج:
| مكان المنشأ: | هونان ، الصين |
| اسم العلامة التجارية: | TENCAN |
| إصدار الشهادات: | CE ISO |
| رقم الموديل: | QSM-30L |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| تفاصيل التغليف: | حالة الخشب الرقائقي + رغوة |
| وقت التسليم: | 20-30 يوم عمل بعد الحصول على السداد الكامل |
| شروط الدفع: | T/T، ويسترن يونيون |
| القدرة على العرض: | 100 مجموعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | آلة الطحن والخلع | النموذج رقم: | QSM-30L |
|---|---|---|---|
| الحجم الكلي: | 30 لتر | الحجم الأقصى للحمل: | 10.5 لتر |
| الجهد: | 220 فولت - 50 هرتز | القوة: | 0.75 كيلو واط |
| تناوب السرعة: | 20-60 دورة في الدقيقة | التحكم في السرعة: | التحكم في التردد |
| إبراز: | Industrial Grade Sieving System,Integrated Milling Grinding Sieving System,Industrial Grade Grinding Sieving System,Integrated Milling Grinding Sieving System,Industrial Grade Grinding Sieving System |
||
منتوج وصف
30-2000L Continuous Grinding & Sieving System - Industrial-Grade Integrated Milling Solution for Uninterrupted Production
Overview
The Continuous Grinding & Sieving Machine represents a breakthrough in industrial powder processing technology, combining high-capacity ball milling with precision sieving in a single integrated system. This advanced equipment enables uninterrupted production of precisely graded powders from 30L to 2000L capacity, featuring real-time particle size classification during the grinding process for maximum efficiency.
Working Principle
The system operates through synchronized mechanical action:
Materials and grinding media rotate at optimized speed
Particles are reduced through impact and shear forces
Qualified particles are continuously sieved and discharged
Oversize particles remain for further grinding
Automated collection system ensures efficient powder recovery
Technical Features
• Multi-Material Liners - Optional alloy steel/SS/polyurethane/zirconia/corundum ceramic
• Smart Discharge System - Automatic media-powder separation
• Dust-Free Operation - Protective jacket maintains purity
• Energy Efficient - Low noise, minimal power consumption
• Precision Control - Adjustable parameters for different materials
Applications
◉ Electronic component materials
◉ Advanced magnetic materials
◉ Pharmaceutical preparations
◉ Ceramic glazes and pigments
◉ Non-metallic mineral processing
◉ New material development
Technical Parameters
| Technical Parameters of Grinding & Sieving Machine | ||||||||
| Model No. | Volume (L) |
Rotate Speed (rpm) |
Max Load Volume (L) |
Power Supply | Available Grinding Cylinder |
Feed Size (mm) |
Output Granularity (mesh) |
Speed Control |
| QSM-30L | 30 | 20-60 | 105 | 220V/0.75KW | Carbon Steel Stainless Steel Nylon Liner Alumina Ceramic Liner PU Liner PTFE Liner |
≤20 | ≥300 | Frequency Converter or Fixed Set Speed at Buyer's Option |
| QSM-50L | 50 | 20-50 | 17.5 | 220V/1.5KW | ≤20 | ≥300 | ||
| QSM-100L | 100 | 20-45 | 35 | 220V/2.2KW | ≤20 | ≥300 | ||
| QSM-200L | 200 | 20-40 | 70 | 380V/4KW | ≤20 | ≥300 | ||
| QSM-300L | 300 | 20-38 | 105 | 380V/5.5KW | ≤20 | ≥300 | ||
| QSM-500L | 500 | 20-36 | 175 | 380V/7.5KW | ≤20 | ≥300 | ||
| QSM-1000L | 1000 | 20-34 | 350 | 380V/11KW | ≤20 | ≥300 | ||
| QSM-2000L | 2000 | 20-34 | 700 | 380V/22KW | ≤20 | ≥300 | ||
