تفاصيل المنتج:

مكان المنشأ: هونان ، الصين
اسم العلامة التجارية: TENCAN
إصدار الشهادات: CE ISO
رقم الموديل: GQM-8-15

شروط الدفع والشحن:

الحد الأدنى لكمية: مجموعة واحدة
الأسعار: قابل للتفاوض
تفاصيل التغليف: كرتون + فوم
وقت التسليم: 3-7 أيام العمل بعد تلقي الدفع الكامل
شروط الدفع: T/T، ويسترن يونيون
القدرة على العرض: 200 مجموعة شهريا
افضل سعر اتصل

معلومات تفصيلية
اسم المنتج: رول جرة مطحنة النموذج رقم: GQM-8-15
الجهد: 380 فولت - 50 هرتز القوة: 2.2 كيلوواط
الحجم الكلي: 120 لتر السعة القصوى: 39.6L
تناوب السرعة: 40-365 دورة في الدقيقة التحكم في السرعة: التحكم في التردد
إبراز:

Ultra-Fine Powder Roll Jar Mill,Small Batch Production Roll Jar Mill,Frequency Control Roll Jar Mill

,

Small Batch Production Roll Jar Mill

,

Frequency Control Roll Jar Mill

منتوج وصف

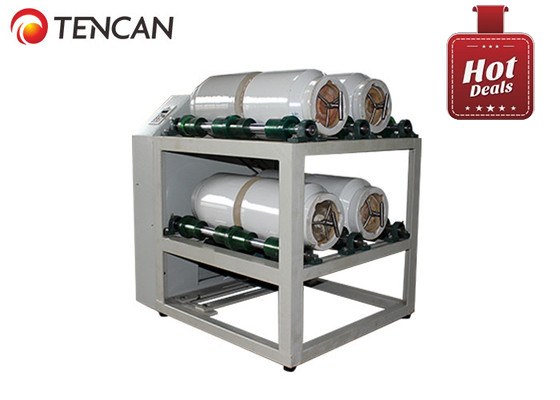

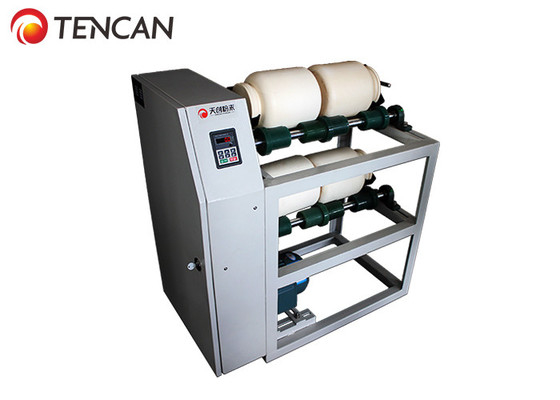

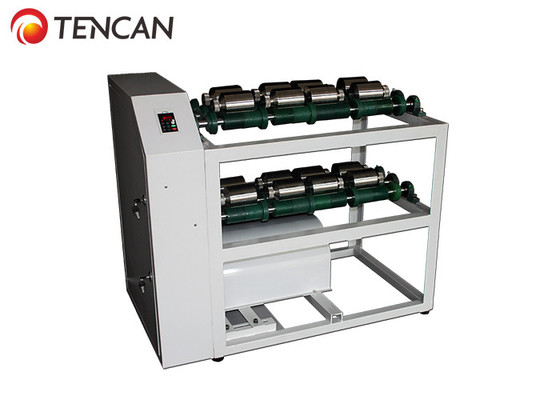

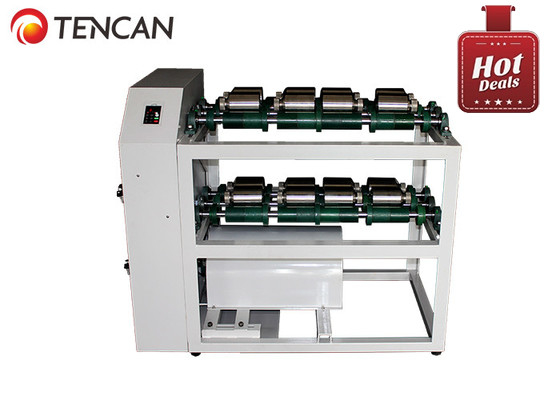

8×15L Multi-Sample Roll Jar Mill - High-Throughput Laboratory Grinder for Ultra-Fine Powder & Small Batch Production

Overview:

The 8×15L Roll Jar Mill is an advanced high-throughput powder processing system designed for laboratory research and small-scale production. Featuring eight independent 15L grinding chambers, this machine enables simultaneous processing of multiple samples while maintaining exceptional grinding precision and uniformity. Its innovative design makes it ideal for material research, quality control, and pilot-scale production across various industries.

Key Advantages:

✔ Unmatched Sample Capacity - Process 8 different materials simultaneously or large batch quantities
✔ Precision Ultra-Fine Grinding - Achieves micron-level particle sizes with uniform distribution
✔ Research-Grade Performance - Ideal for comparative studies and material development projects
✔ Smart Operation System - Features programmable timing control with pause/resume functions
✔ Heavy-Duty Construction - Industrial-grade rubber rollers ensure long-term reliability
✔ Versatile Applications - Compatible with brittle, hard, and soft materials alike

Working Principle:

The system utilizes optimized rotational dynamics where grinding media and materials are elevated then cascade down, creating optimal impact, shear, and friction forces for efficient size reduction. The multi-pot design allows for parallel experimentation without cross-contamination.

Ideal For:

Advanced Materials Research Labs
Pharmaceutical Formulation Development
Ceramic & Metal Powder Processing
Nanotechnology & Composite Material Studies
Quality Control & Testing Facilities

Maximize research efficiency with high-capacity, multi-sample processing capability!



Technical Parameters



Technical Parameters of Roll Jar Mill
Category Dimensions/WT
(mm)		 Model No. Motor
Power(kw)		 Voltage Rotate Speed
(rpm)
2 work station 950*480*685mm/59kgs GQM-2-5 0.37 220V-50Hz/60Hz 50-410
1130*550*690mm/80kgs GQM-2-15 1.1 220V-50Hz/60Hz 40-365
13506550*690mm/92kgs GQM-2-20 1.5 220V-50Hz/60Hz 40-365
4 work station 950*660*690mm/70kgs GQM-4-5
Single Layer		 0.75 220V-50Hz/60Hz 50-410
950*480*870mm/92kgs GQM-4-5
Double Layers		 0.75 220V-50Hz/60Hz 50-410
1130*800*690mm/95kgs GQM-4-15 1.5 220V-50Hz/60Hz 40-365
1350*820*690mm/122kgs GQM-4-20 2.2 380V-50Hz/60Hz 40-340
8 work station 950*660*960mm/106kgs GQM-8-5 1.5 220V-50Hz/60Hz 50-410
1130*800*690mm/152kgs GQM-8-15 2.2 380V-50Hz/60Hz 40-365



Accessories of Roll Mill Jars & Balls



Besides rolling ball mill machines, we provide all kinds of roll mill jars,like stainless steel mill jar, zirconia mill jars, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, agate mill balls, tungsten mill balls, etc.



GQM-8-15 Multi-Sample Roll Jar Mill Throughput Lab Grinder for Ultra-Fine Powder Small Batch Production Frequency Control 0

Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.		 Vacuum mill jar



GQM-8-15 Multi-Sample Roll Jar Mill Throughput Lab Grinder for Ultra-Fine Powder Small Batch Production Frequency Control 1



References About Grinding Medias & Materials
Materials of
Grinding Media		 Hardness
(Mohs)		 Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.



Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar √
Corundum Mill Jar ▲ √   ▲
Stainless Steel Mill Jar     √
Zirconia Mill Jar   ▲   √
Nylon Mill Jar ▲     √
PTFE Mill Jar √     ▲
Polyurethane Mill Jar √     ▲
Tungsten Carbide Mill Jar       ▲ √
√ means: most suitable ▲ means: suitable
