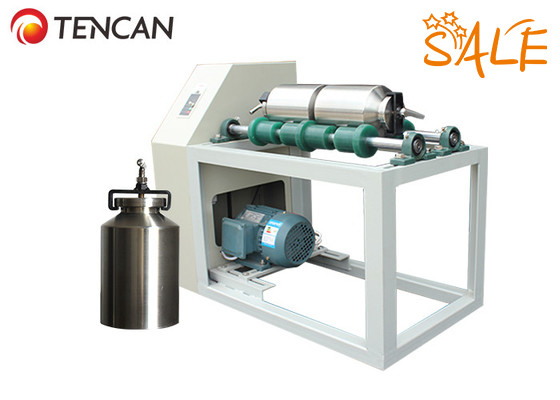

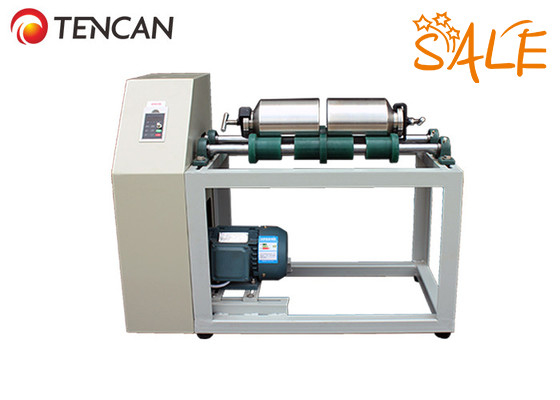

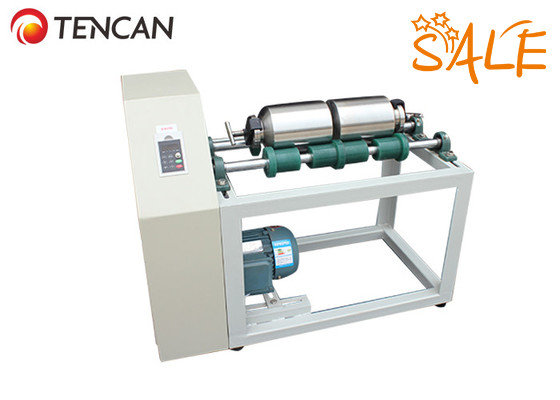

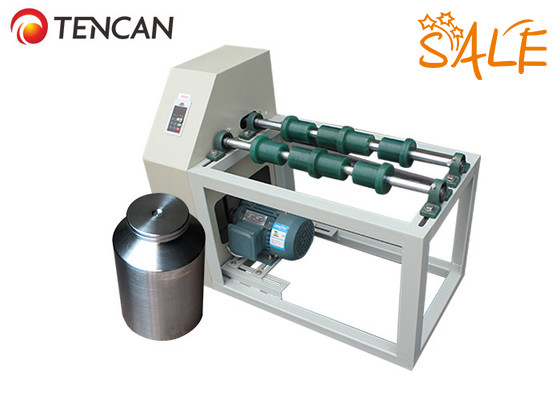

2*5L Horizontal Roll Jar Mill Micron Powder Grinding Mixing for Lab/Small Batch Production Voltage 220V-50Hz or 110V-60Hz
تفاصيل المنتج:
| مكان المنشأ: | هونان ، الصين |
| اسم العلامة التجارية: | TENCAN |
| إصدار الشهادات: | CE ISO |
| رقم الموديل: | GQM-2-5 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | مجموعة واحدة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون + فوم |
| وقت التسليم: | 3-7 أيام العمل بعد تلقي الدفع الكامل |
| شروط الدفع: | T/T، ويسترن يونيون |
| القدرة على العرض: | 200 مجموعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | مطحنة برطمان أفقية | النموذج رقم: | GQM-2-5 |
|---|---|---|---|
| وظائف العمل: | 2 وظائف | الحجم الكلي: | 10 لتر |
| السعة القصوى: | 3.33 لتر | تناوب السرعة: | 50-410 دورة في الدقيقة |
| الجهد: | 220V-50HZ OT 110V-60Hz | القوة: | 0.37 كيلو واط |
| إبراز: | 2*5L Horizontal Roll Jar Mill |
||
منتوج وصف
2*5L Horizontal Roll Jar Mill – High-Efficiency Micron Powder Grinding & Mixing for Lab/Small Batch Production
Overview:
The Horizontal Roll Jar Mill is a precision powder milling machine designed for ultra-fine grinding and mixing in laboratory and small-scale production environments. Also known as a multi-position rolling ball mill, it features dual 5L jars for efficient parallel processing of materials.
Key Advantages:
✔ Ultra-Fine Grinding – Achieves micron-level powder consistency for advanced applications.
✔ Compact & User-Friendly – Simple operation with timing control, pause functions, and cumulative timing.
✔ Versatile Applications – Ideal for electronic/magnetic materials, ceramics, metal powders, pharmaceuticals, and R&D.
✔ Durable Design – Features high-wear-resistant rubber rollers and optimized rotation speed for uniform particle dispersion.
✔ Flexible Operation – Supports continuous or intermittent grinding, customizable for lab or small-batch needs.
Working Principle:
Materials and grinding media are lifted and dropped by rotational force, ensuring efficient crushing via impact, friction, and shear forces. The inclined flow movement of grinding balls guarantees homogeneous micron-level powder output.
Ideal For:
Electronic & Magnetic Materials
Pharmaceutical & Biomedical Research
Ceramic Glazes & Metal Alloy Powders
Nanomaterials & Advanced Composites
Upgrade your powder processing with precision, efficiency, and reliability!
Technical Parameters
| Technical Parameters of Rolling Jar Laboratory Ball Mill | |||||
| Category | Dimensions/WT (mm) |
Model No. | Motor Power(kw) |
Voltage | Rotate Speed (rpm) |
| 2 work station | 950*480*685mm/59kgs | GQM-2-5 | 0.37 | 220V-50Hz/60Hz | 50-410 |
| 1130*550*690mm/80kgs | GQM-2-15 | 1.1 | 220V-50Hz/60Hz | 40-365 | |
| 13506550*690mm/92kgs | GQM-2-20 | 1.5 | 220V-50Hz/60Hz | 40-365 | |
| 4 work station | 950*660*690mm/70kgs | GQM-4-5 Single Layer |
0.75 | 220V-50Hz/60Hz | 50-410 |
| 950*480*870mm/92kgs | GQM-4-5 Double Layers |
0.75 | 220V-50Hz/60Hz | 50-410 | |
| 1130*800*690mm/95kgs | GQM-4-15 | 1.5 | 220V-50Hz/60Hz | 40-365 | |
| 1350*820*690mm/122kgs | GQM-4-20 | 2.2 | 380V-50Hz/60Hz | 40-340 | |
| 8 work station | 950*660*960mm/106kgs | GQM-8-5 | 1.5 | 220V-50Hz/60Hz | 50-410 |
| 1130*800*690mm/152kgs | GQM-8-15 | 2.2 | 380V-50Hz/60Hz | 40-365 | |
Accessories of Roll Mill Jars & Balls
Besides rolling ball mill machines, we provide all kinds of roll mill jars,like stainless steel mill jar, zirconia mill jars, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, agate mill balls, tungsten mill balls, etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
