معلومات تفصيلية |
|||
| نوع المنتج: | فرن المختبر من النوع الصندوقي | درجة الحرارة القصوى: | 1800 درجة مئوية |
|---|---|---|---|
| درجة حرارة العمل: | 1700 درجة مئوية | حجم الغرفة: | 1 لتر ~ 729 لتر، قابل للتخصيص |
| عنصر التسخين: | المقاومة تسخين الأسلاك | التحكم في درجة الحرارة: | تحكم PID قابل للبرمجة من 50 قطعة |
| بطانة الفرن: | ألياف موليت متعددة البلورات | تصميم التبريد: | غلاف مزدوج الطبقة مزود بمروحة تبريد |
| حماية السلامة: | حماية من الحرارة الزائدة | طلب: | التلبيد والصهر وتحليل المواد |
| إبراز: | Ultra-High Temperature Muffle Furnace,1800°C Muffle Furnace,Material Processing Muffle Furnace |
||
منتوج وصف

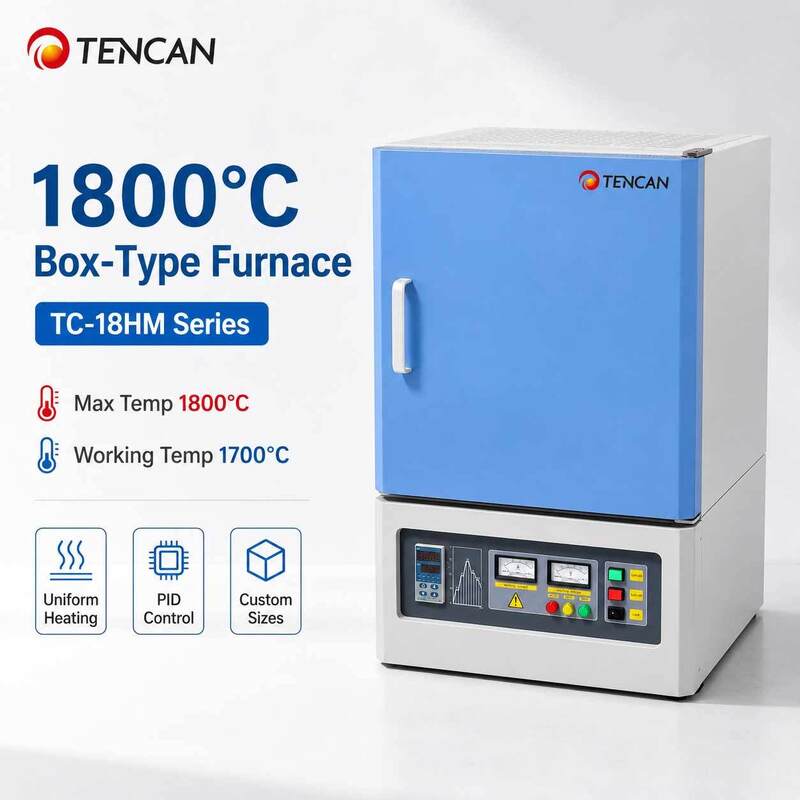

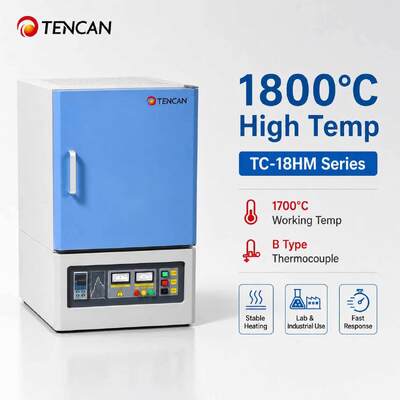

1800°C Ultra-High Temperature Muffle Furnace
The 1800°C Ultra-High Temperature Muffle Furnace is developed for demanding thermal processes that require extremely high operating temperatures, excellent temperature stability, and reliable long-term performance. It is suitable for advanced ceramic sintering, zirconia material processing, powder metallurgy, metal and non-metal heat treatment, material research, and high-temperature laboratory testing.
Designed as an electric box-type furnace, this 1800°C muffle furnace provides a clean and enclosed heating chamber to help protect samples during sintering, firing, calcination, and thermal analysis. The independent furnace chamber reduces direct exposure between the material and heating elements, supporting more consistent processing results and lower contamination risk.

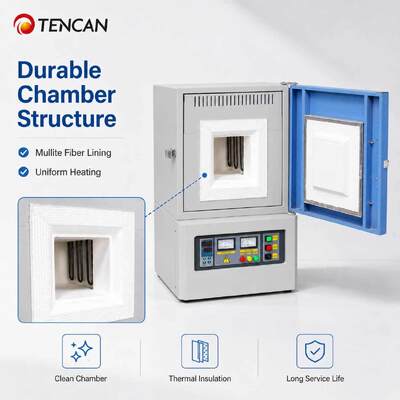

The furnace insulation system is built with high-performance refractory fiber materials, offering strong heat retention, reduced heat loss, and improved energy efficiency during ultra-high-temperature operation. Its reinforced chamber structure enhances durability and helps maintain furnace stability during repeated heating and cooling cycles.
With precise temperature control, stable heating performance, and dependable safety protection, this 1800°C muffle furnace is an ideal solution for universities, research institutes, dental material laboratories, ceramic manufacturers, powder metallurgy facilities, and industrial R&D centers that require advanced high-temperature processing equipment.
Product Features
- Maximum temperature range: room temperature to 1800°C.
- Available chamber capacities from 1 L to 1000 L.
- Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
- Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.

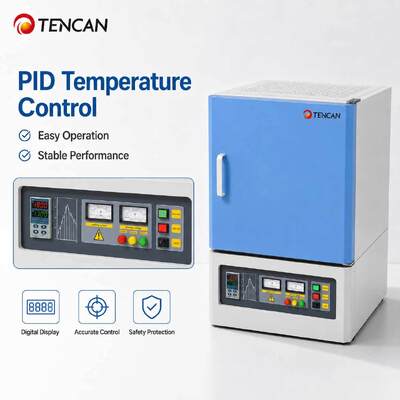

- Intelligent 50-segment programmable automatic temperature control.
- Built-in over-temperature alarm for safer operation.
- Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.
1200°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-12N-1 | 1200 | 1100 | 100×100×100 | 1 | 0.8 | 1 | Type K |
| TC-12N-3 | 1200 | 1100 | 150×150×150 | 3 | 2.5 | 1 | Type K |
| TC-12N-8 | 1200 | 1100 | 200×200×200 | 8 | 5 | 1 | Type K |
| TC-12N-12 | 1200 | 1100 | 200×200×300 | 12 | 6 | 1 | Type K |
| TC-12N-36 | 1200 | 1100 | 300×300×400 | 36 | 10 | 3 | Type K |
| TC-12N-64 | 1200 | 1100 | 400×400×400 | 64 | 16 | 3 | Type K |
| TC-12N-125 | 1200 | 1100 | 500×500×500 | 125 | 25 | 3 | Type K |
| TC-12N-216 | 1200 | 1100 | 600×600×600 | 216 | 36 | 3 | Type K |
| TC-12N-512 | 1200 | 1100 | 800×800×800 | 512 | 64 | 3 | Type K |
| TC-12N-729 | 1200 | 1100 | 900×900×900 | 729 | 80 | 3 | Type K |
1400°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-14S-1 | 1400 | 1300 | 100×100×100 | 1 | 1 | 1 | Type S |
| TC-14S-3 | 1400 | 1300 | 150×150×150 | 3 | 3 | 1 | Type S |
| TC-14S-8 | 1400 | 1300 | 200×200×200 | 8 | 5 | 1 | Type S |
| TC-14S-12 | 1400 | 1300 | 200×200×300 | 12 | 7 | 1 | Type S |
| TC-14S-36 | 1400 | 1300 | 300×300×400 | 36 | 11 | 3 | Type S |
| TC-14S-64 | 1400 | 1300 | 400×400×400 | 64 | 18 | 3 | Type S |
| TC-14S-125 | 1400 | 1300 | 500×500×500 | 125 | 27 | 3 | Type S |
| TC-14S-216 | 1400 | 1300 | 600×600×600 | 216 | 40 | 3 | Type S |
| TC-14S-512 | 1400 | 1300 | 800×800×800 | 512 | 70 | 3 | Type S |
| TC-14S-729 | 1400 | 1300 | 900×900×900 | 729 | 88 | 3 | Type S |
1700°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-17M-1 | 1700 | 1600 | 100×100×100 | 1 | 1 | 1 | Type B |
| TC-17M-3 | 1700 | 1600 | 150×150×150 | 3 | 4 | 1 | Type B |
| TC-17M-8 | 1700 | 1600 | 200×200×200 | 8 | 7 | 1 | Type B |
| TC-17M-12 | 1700 | 1600 | 200×200×300 | 12 | 8 | 1 | Type B |
| TC-17M-36 | 1700 | 1600 | 300×300×400 | 36 | 12 | 3 | Type B |
| TC-17M-64 | 1700 | 1600 | 400×400×400 | 64 | 20 | 3 | Type B |
| TC-17M-125 | 1700 | 1600 | 500×500×500 | 125 | 30 | 3 | Type B |
| TC-17M-216 | 1700 | 1600 | 600×600×600 | 216 | 45 | 3 | Type B |
| TC-17M-512 | 1700 | 1600 | 800×800×800 | 512 | 80 | 3 | Type B |
| TC-17M-729 | 1700 | 1600 | 900×900×900 | 729 | 96 | 3 | Type B |

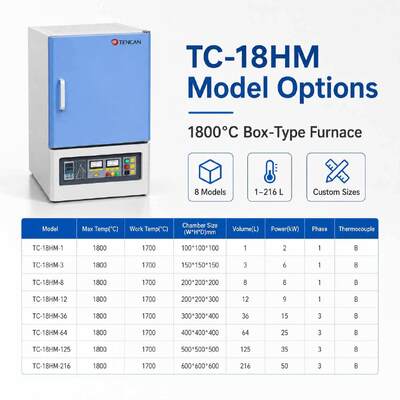

1800°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-18HM-1 | 1800 | 1700 | 100×100×100 | 1 | 2 | 1 | Type B |
| TC-18HM-3 | 1800 | 1700 | 150×150×150 | 3 | 6 | 1 | Type B |
| TC-18HM-8 | 1800 | 1700 | 200×200×200 | 8 | 8 | 1 | Type B |
| TC-18HM-12 | 1800 | 1700 | 200×200×300 | 12 | 9 | 1 | Type B |
| TC-18HM-36 | 1800 | 1700 | 300×300×400 | 36 | 15 | 3 | Type B |
| TC-18HM-64 | 1800 | 1700 | 400×400×400 | 64 | 25 | 3 | Type B |
| TC-18HM-125 | 1800 | 1700 | 500×500×500 | 125 | 35 | 3 | Type B |
| TC-18HM-216 | 1800 | 1700 | 600×600×600 | 216 | 50 | 3 | Type B |
Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.
Related Accessories
Standard Accessories
- Furnace door insulation brick
- High-temperature gloves
- Crucible tongs
- User manual
- Spare heating elements for 1400°C and 1700°C models
Optional Accessories
- HD touchscreen controller
- Exhaust port
- Observation window
- Multi-layer kiln furniture
- Alumina crucible
- Communication software
