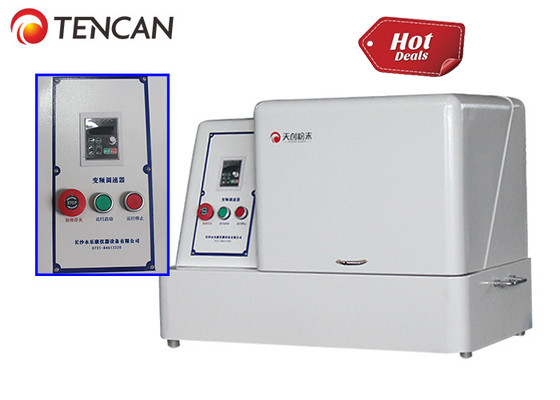

Capacity 8L Planetary Ball Mill Activated Carbon Processing System with 4×2000ml Jars and Max Capacity 2.7L by TENCAN

⇒
Before Grinding After Grinding


2. Solution:
1) Equipment selection: XQM-8 vertical planetary ball mill.
2) Accessories: alumina tank and zirconia ball.
3) Operating parameter settings: Speed: 500rpm, run for 30 minutes and then run back and forth in positive and negative directions.
4) Grinding time: 2 hours
5) Grinding result: 100%<50 μ m
6) Conclusion: The XQM-8 planetary ball mill can be used for grinding activated carbon.

This industrial-grade system combines large batch processing capacity with laboratory precision, making it perfect for both research institutions and production facilities working with activated carbon and similar porous materials. The optimized grinding parameters ensure maximum surface area preservation while achieving uniform particle distribution.

Features

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Technical Features

Technical Parameters

Accessories of Mill Jars & Balls

Available Mill Jars:

304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.

Available Mill Balls:

304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
