10L Food-Grade Planetary Ball Mill Specialized System for Green Tea Powder Processing and Frequency Control
تفاصيل المنتج:
| مكان المنشأ: | هونان ، الصين |
| اسم العلامة التجارية: | TENCAN |
| إصدار الشهادات: | CE ISO |
| رقم الموديل: | XQM-10 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | مجموعة واحدة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | علبة كرتون أو خشب رقائقي |
| وقت التسليم: | 3-7 أيام عمل بعد استلام الدفع الكامل |
| شروط الدفع: | T/T ، Western Union ، L/C ، Moneygram ، |
| القدرة على العرض: | 200 مجموعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | مطحنة الكرة الكوكبية مربع مختبر | النموذج رقم: | XQM-10 |
|---|---|---|---|
| الجهد: | 220 فولت - 50 هرتز | القوة: | 1.5 كيلو واط |
| تناوب السرعة: | 70-580 دورة في الدقيقة | التحكم في السرعة: | التحكم في التردد |
| الحجم الكلي: | 10 لتر | السعة القصوى: | 3.3 لتر |
| إبراز: | Frequency Control Planetary Ball Mill,10L Planetary Ball Mill,Green Tea Powder Planetary Ball Mill,10L Planetary Ball Mill,Green Tea Powder Planetary Ball Mill |
||
منتوج وصف
TENCAN 10L Food-Grade Planetary Ball Mill - Specialized System for Green Tea Powder Processing
Product Description:
The TENCAN 10L Square Planetary Ball Mill is specifically engineered for fine powder processing in the food industry, with optimized performance for green tea grinding. This advanced system features four grinding stations with nylon jars and zirconia balls, capable of reducing 1mm tea leaves to under 50μm particles in just one hour with 100% satisfaction rate. The food-safe design ensures contamination-free processing while maintaining the natural properties of tea materials.
Key Specifications:

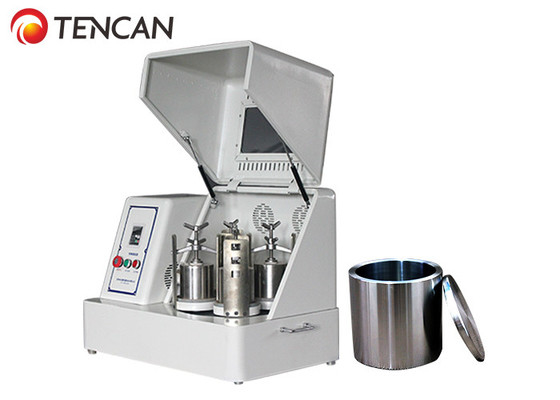

Model: XQM-10 Vertical Planetary Ball Mill
Processing Capacity: 500g per batch (4 samples simultaneously)
Input Size: 1mm tea leaves
Output Size: ≤50μm
Processing Time: 60 minutes

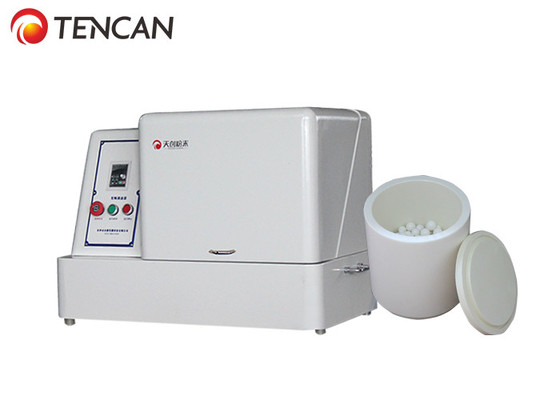

Grinding Media: Nylon jars with zirconia balls
Subsequent Analysis: Particle size distribution testing
Technical Highlights:
• Food-grade processing system with specialized grinding media
• High-efficiency grinding achieves target particle size within 1 hour
• Quadruple-sample processing capability enhances research productivity
• Variable frequency control for optimized grinding parameters
• Low-noise operation suitable for laboratory environments
• Comprehensive safety features including emergency stop function
This system has been successfully implemented in numerous tea research institutions and food production facilities, providing perfect preprocessing solutions for green tea powder production and bioactive component extraction processes. The equipment maintains all original performance data while offering enhanced food safety assurance.
⇒
Before Grinding After Grinding
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soft material<10mm; Hard material<3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 hours |
| Materials of Jar | stainless steel,agate,nylon,corundum,zirconia, PU, PTFE etc |
Technical Parameters
| Main Parameters of 8L 110 / 220v Planetary Ball Mill - Square design | |||||
| Model | Power(kW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
|
XQM-8 XQM-10 XQM-12 |
1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
Grinding Jars and Balls Accessories
Available Grinding Jars:
304 Stainless Steel Grinding Jar; 316 Stainless Steel Grinding Jar; Tungsten Carbide Grinding Jar; Agate Grinding Jar; Alumina Ceramic Grinding Jar (Corundum Jar); Zirconia (ZrO₂) Grinding Jar; Nylon Grinding Jar; Polyurethane (PU) Grinding Jar; PTFE (Teflon) Grinding Jar; and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Grinding Jars |
| Soil and other Materials which are not allowed with any impurity | Agate grinding jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia grinding jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide grinding jar |
| Strong add & alkali materials or other materials at high temperature | PTFE grinding jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel grinding jar |
| Pigment or other materials with later process under high temperature | Nylon grinding jar |
| Aluminum materials like ceramic glaze | Corundum grindingl jar |
| Electronic materials like lithium battery | Polyurethane grinding jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum grinding jar |
| References for Matchable Jar Sizes with Squre type Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-1 | 1.0L | 50ml, 100ml, 250ml | 2pcs or 4pcs | 50ml, 100ml |
| XQM-2 | 2.0L | 250ml, 500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml |
| XQM-4 | 4.0L | 250ml, 500ml,1000ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml |
| XQM-6 | 6.0L | 500ml, 1000ml, 1500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L |
| XQM-8 | 8.0L | 1L, 2L | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L, 1.5L |
| XQM-10 | 10.0L | 1L, 2L, 2.5L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-12 | 12.0L | 1L, 2L, 2.5L, 3L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-16 | 16.0L | 2L, 3L, 4L | 2pcs or 4pcs | 1L, 1.5L, 2L, 3L |
Available Grinding Balls:
304 Stainless Steel grinding Balls; 316 Stainless Steel grinding Balls; Tungsten Carbide grinding Balls; Agate grinding Balls; Alumina Ceramic grinding Balls; Zirconia (ZrO₂) grinding Balls; and etc.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Ultra wear-resistant, free of any impurities, corrosion-resistant, and heat-resistant. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Ultra wear-resistant, used for materials such as medicine and food that are not contaminated by metals, corrosion-resistant, and heat-resistant. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Ultra wear-resistant, free of any impurities, corrosion-resistant, and heat-resistant. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
