تفاصيل المنتج:

مكان المنشأ: هونان ، الصين
اسم العلامة التجارية: TENCAN
إصدار الشهادات: CE ISO
رقم الموديل: XQM-0.4A

شروط الدفع والشحن:

الحد الأدنى لكمية: 1 مجموعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: كرتون + فوم
وقت التسليم: 3-7 أيام عمل بعد الحصول على السداد الكامل
شروط الدفع: T / T ، ويسترن يونيون ، L / C ، MoneyGram
القدرة على العرض: 200 مجموعة شهريا
افضل سعر اتصل

معلومات تفصيلية
اسم المنتج: 0طاحونة الكرات الكوكبية النموذج رقم: XQM-0.4A
الجهد: 220-50Hz/110V-60Hz القوة: 0.25 كيلو واط
تناوب السرعة: 90-870 دورة في الدقيقة التحكم في السرعة: التحكم في التردد
الأبعاد: 500 * 300 * 340 ملم الوزن الصافي: 29 كجم
إبراز:

Food Planetary Ball Mill,0.25kW Planetary Ball Mill,0.4L Planetary Ball Mill

,

0.25kW Planetary Ball Mill

,

0.4L Planetary Ball Mill

منتوج وصف

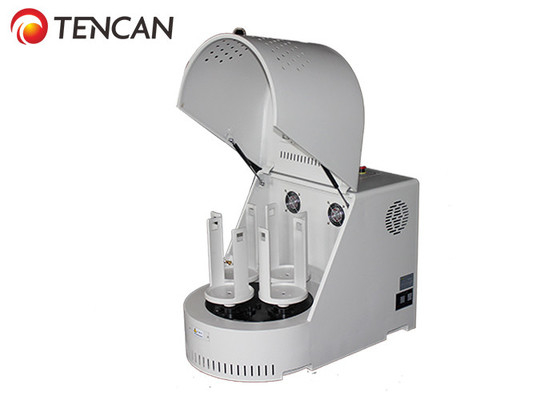

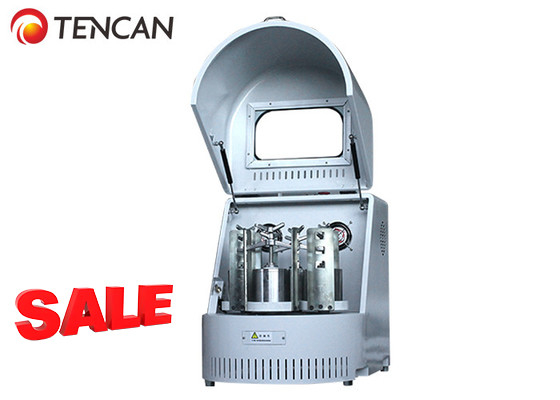

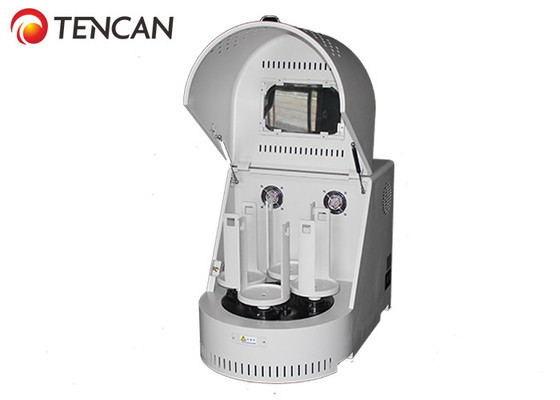

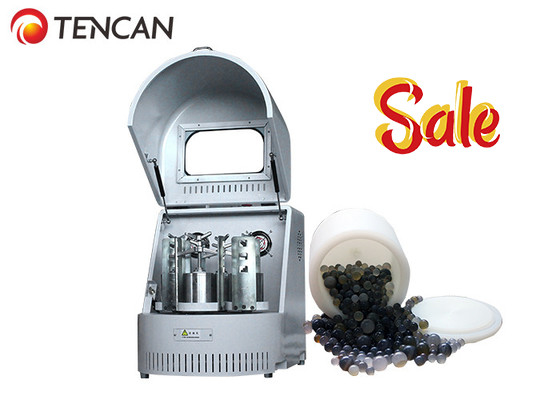

TENCAN 0.4L Planetary Ball Mill for Food, Chemicals Powder Granding



Overview


The TENCAN 0.4L Vertical Planetary Ball Mill is an essential tool for high-tech material mixing, fine grinding, sample preparation, and small-scale production. Designed for R&D labs, universities, and industrial laboratories, this compact and efficient mill delivers high-performance grinding with low noise and versatile functionality. It can process four samples simultaneously and supports vacuum grinding when equipped with vacuum ball mill tanks, ensuring optimal results for sensitive materials.



Working Principle


The mill features four grinding tanks mounted on a rotating turntable. As the turntable spins, the tanks undergo planetary motion, causing the grinding balls and samples to collide at high speed. This intense mechanical impact efficiently reduces samples to fine powders, with particle sizes as small as 0.1μm. Both dry and wet grinding methods are supported, accommodating a wide range of materials.



Applications



  • Material Processed: Cinnabar (Pigment)

  • Feed Size: 100μm

  • Output Granularity: <20μm (meeting customer requirements)

  • Grinding Time: 2 hours

  • Sample Quantity: 2 kgs per batch

  • Equipment Used: XQM-6 model with Nylon pots and zirconia balls

Key Features

  1. Precision & Consistency: Gear-driven mechanism ensures stable rotation speed for repeatable results.

  2. High Efficiency: Planetary motion delivers high-energy impacts, enabling ultrafine grinding.

  3. Multi-Sample Processing: Grind four different materials or sizes in a single run.

  4. Adjustable Speed: Frequency converter allows precise speed control with overload protection.

  5. Programmable Operation: Offers timed grinding, auto-reverse, and multiple modes (continuous, intermittent) for optimized processing.

  6. User-Friendly Design: Low center of gravity, compact structure, quiet operation, and minimal wear.

  7. Safety Protection: Safety switch halts operation if the cover is opened during use.

Ideal for pigment processing and advanced material research, the TENCAN 0.4L Planetary Ball Mill combines reliability, precision, and versatility for superior sample preparation.





Technical Parameters



Technical Features of Mini Vertical Planetary Ball Mill
Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding jars working together
Maximum Loading Capacity 2/3 of the capacity of milling jar
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest granule reaches 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 72hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.

Main Parameters of Mini Vertical Planetary Mill Ball
Model Power
(KW)		 Voltage Dimension(mm)) Revolution Speed
(rpm)		 Rotation Speed
(rpm)		 Total Timing
(min)		 Alternating Run Time of Forward & Reversal Rotation
(min)
XQM-0.4A 0.25 220V-50Hz 530*300*340 45-435 90-870 1-9999 1-999



Accessories for Planetary Ball Mill



We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, PTFE and etc.



Available Mill Balls: Agate balls, tungsten carbide balls, alumina balls, zirconia balls
